Control panel

torchio also has a page in the browser that does the job of watch and lets you start the tests with sliders and buttons instead of curl. It is off by default, turn it on with UI=1 and open /ui:

docker run -p 3000:3000 -e UI=1 altrdev/torchio:latest

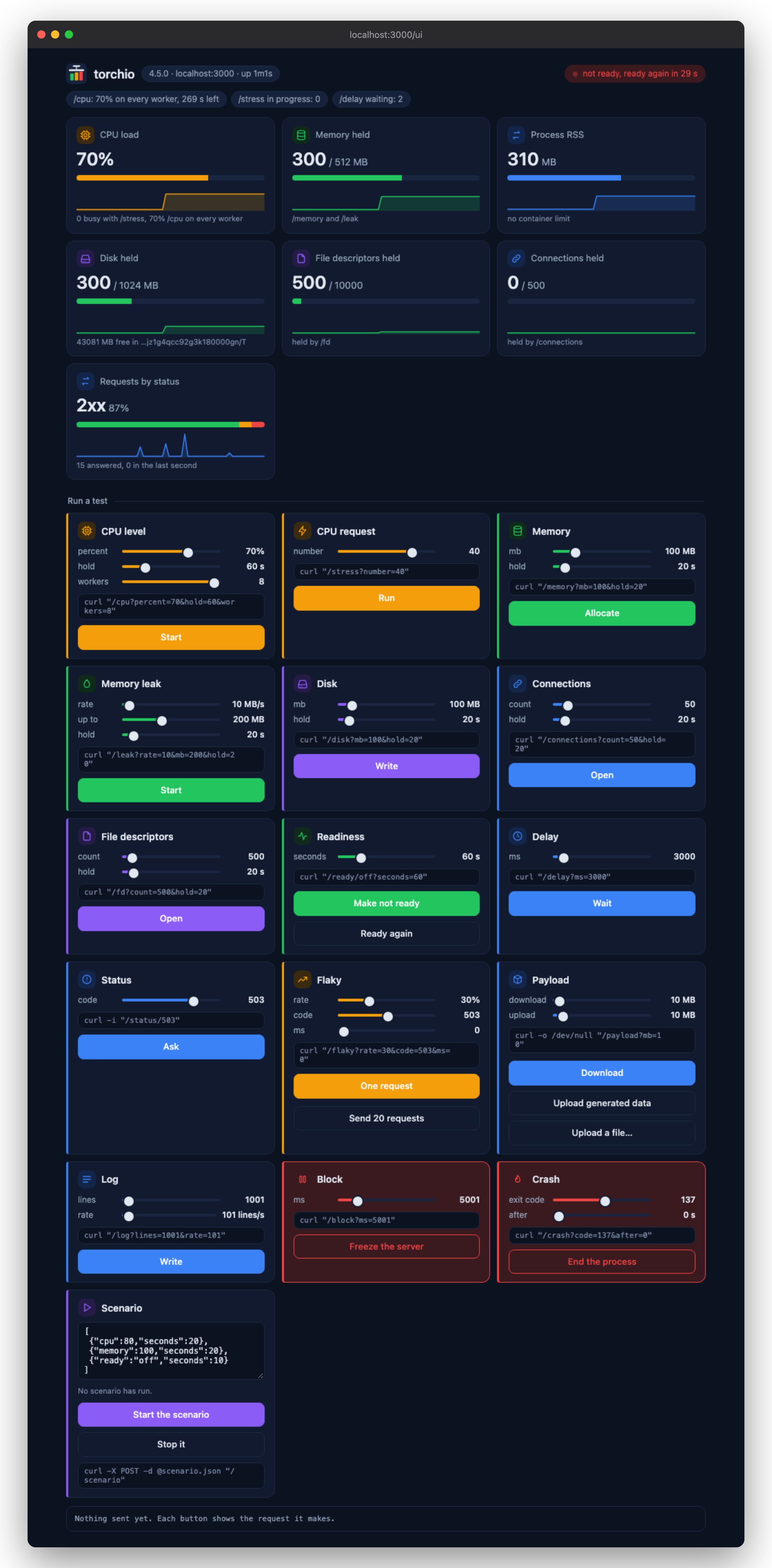

The gauges and their history (the last 60 seconds) come from /info and /metrics, refreshed every second, and the page shows whether /ready is answering 200 or 503. Each card makes the request you see written under its sliders, and the answer goes in the log at the bottom, so it is also a way to learn the API. The history lives in the page: reloading it starts again.

Three cards do more than send one request. Status asks for any HTTP status. Flaky sends a batch of 20 requests to /flaky and counts how many failed, since the failures come from the requests and not from the server. Payload downloads or uploads a body (generated, or a file you pick) and reports the speed, and if the body is cut short before its Content-Length: the browser counts what it gets and what it sends, so what is measured is the road between the browser and the server, proxies and ingresses included. An upload from the page is at most 200 MB, because the browser keeps the body in memory; the server’s limit is MAX_PAYLOAD_MB. /oom has no card on purpose.

A card runs a scenario: you write the steps in JSON, start it and stop it, and the step it is in and the time left show in the card and at the top of the page. The page makes /crash a button, which is why it is off by default (and the button asks to be clicked twice). It needs no extra dependency and no build, it is one static file.
